PiEEG

Now you can buy Brain-computer interface (EEG device) EEG, EMG, and ECG bio-signals (PiEEG) for 8 EEG channels in the market in our partner shop Elecrow.

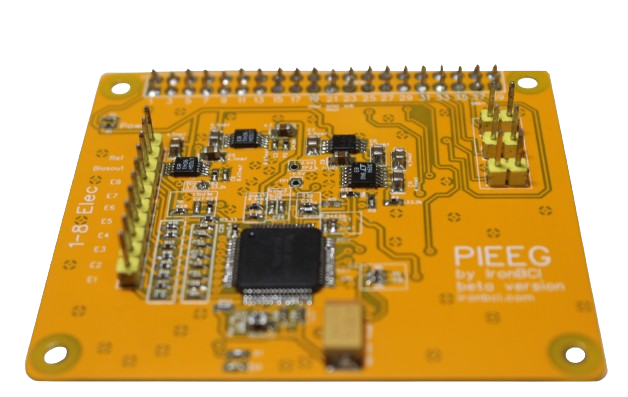

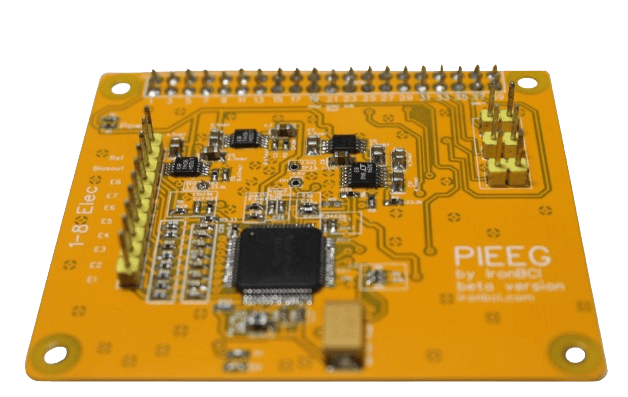

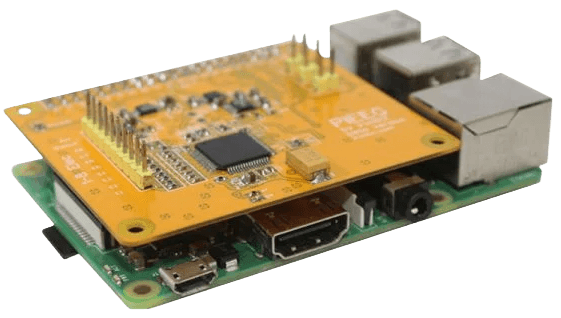

PiEEG (Measure EEG with RaspberryPi) – Brain-computer interface (EEG, EMG, and ECG bio-signals) is an open-source Raspberry Pi shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG). PiEEG is versatile, easy to work with, and compatible with different types of electrodes. Best of all, it was designed to be usable by anyone. To begin measuring bio-signals, all you need to do is connect the electrodes and run a Python script. Applications include gaming, entertainment, sports, health, meditation, and more.

PiEEG is not a medical device and has not been certified by any government regulatory agency for use with the human body. You are fully responsible for your personal decision to purchase this device and, ultimately, for its safe use. Please read LIABILITIES.

Buy

Features & Specifications

  • Compatible with Raspberry Pi 3, 4 and 5
  • 8 channels for connecting wet or dry electrodes
  • Data transfer via SPI protocol with a frequency from 250 SPS to 16 kSPS and a resolution of 24 bits per channel
  • Programmable signal gain: 1, 2, 4, 6, 8, 12, 24
  • Ability to measure impedance
  • 3 free pins for connecting external objects (ground and Raspberry Pi channel)
  • Easy programming with the provided open-source software for reading and processing data in Python

All technical details as and SDK and sofwtware on GitHub , YouTube

Why Is PiEEG

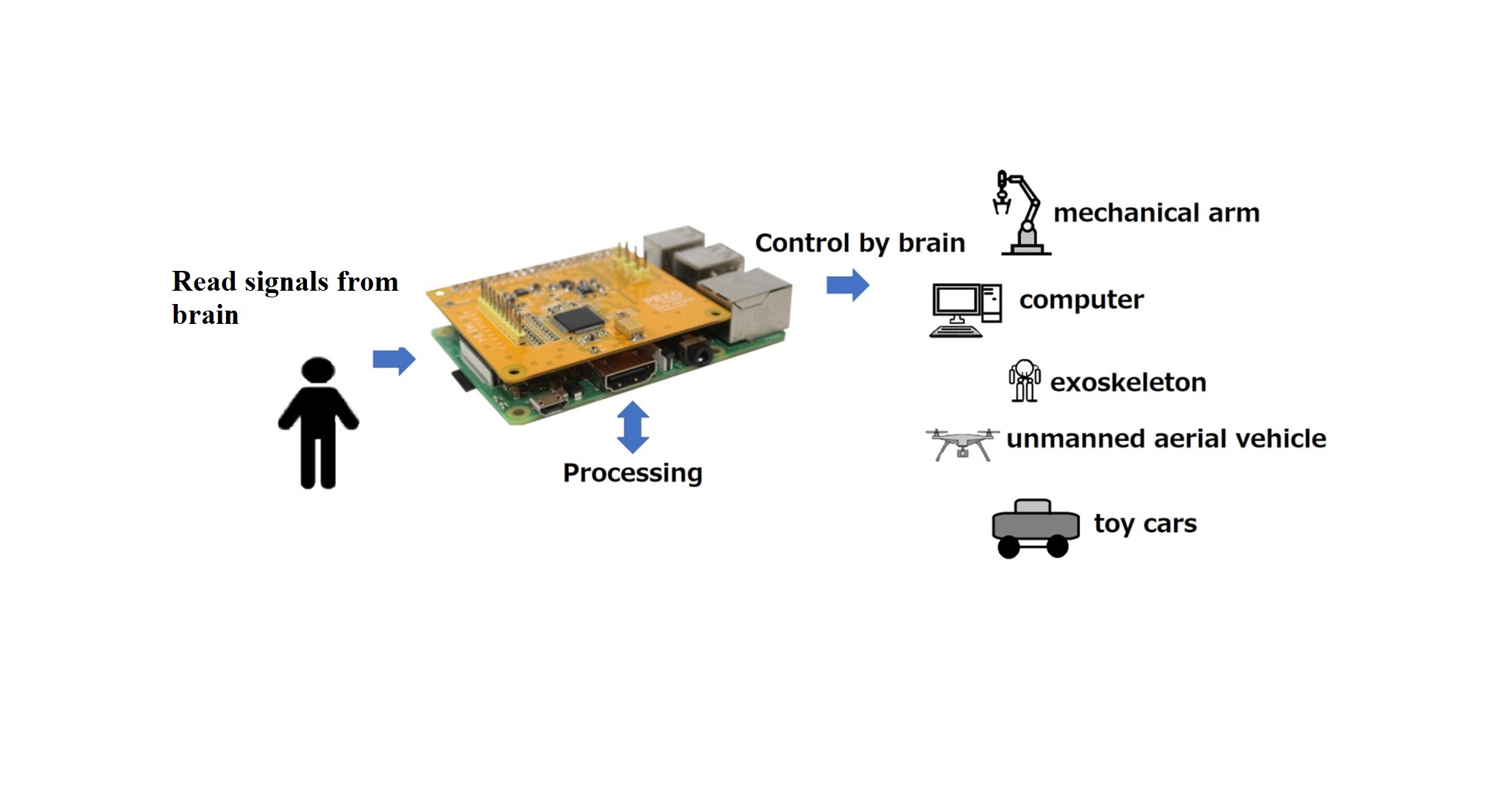

The Raspberry Pi stands as one of the most esteemed single-board computers worldwide, renowned for its reliability and user-friendly interface. Leveraging the synergy between PiEEG and Raspberry Pi opens up an accessible avenue for delving into neuroscience. This amalgamation facilitates seamless EEG data reading and real-time signal processing directly on the Raspberry Pi, eliminating the need for data transmission and the utilization of additional computing resources for feature extraction and signal processing. PiEEG not only serves as a valuable tool for learning bioscience but also harbors potential for various practical applications, including mind-controlled robotic manipulation, stress and meditation management, among others.
We provide comprehensive software packages, along with all requisite technical documentation and extensive user support for PiEEG device enthusiasts.

Potential  application

A Novel EEG-Based Real-Time Emotion Recognition Approach Using Deep Neural Networks on Raspberry Pi

A Raspberry Pi-Based Traumatic Brain Injury Detection System for Single-Channel Electroencephalogram

EEG-based Brain Computer Interface Prosthetic Hand using Raspberry Pi 4

A Wearable EEG Real-time Measure and Analysis Platform for Home Applications

.
