EMG / ECG / EKG Kit
All-in-one kit for measuring electromyography, electrocardiography, and electroencephalography. Plug straight into any PiEEG hardware.
About this kit

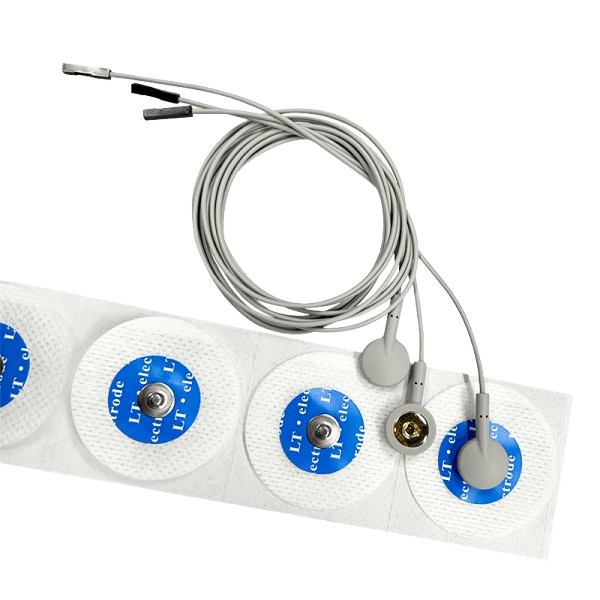

Everything you need to record muscle (EMG) and heart (ECG / EKG) signals: 3 lead cables with 2.54 mm connectors and 50 high-quality self-adhesive Ag/AgCl snap electrodes. Peel, stick, snap and plug in. Start measuring in under a minute.
Why this kit?
| Plug and play | The cables end in standard 2.54 mm connectors that fit PiEEG boards directly. No soldering, no adapters. |
| Clean, stable signals | Silver chloride (Ag/AgCl) sensors with a solid gel interface give low-noise contact with the skin. |
| Comfortable for movement | Soft, flexible, breathable non-woven backing that moves with the body, suitable for long recordings. |
| Quick to apply | Self-adhesive electrodes stay in place without tape or straps. |
| Plenty of electrodes | 50 electrodes for many sessions and experiments. |
Compatible devices
| Device | Host |
|---|---|
| PiEEG-8, PiEEG-16 | Raspberry Pi |
| IronBCI-8 | Wireless (Bluetooth) |
| IronBCI-32 | USB |
| MicroBCI | STM32 NUCLEO-WB55 |
| JNEEG | NVIDIA Jetson Nano |
| ardEEG | Arduino UNO R4 WiFi |
Where to place the electrodes
| Measurement | Signal (channel) | Reference and bias |
|---|---|---|
| EMG, forearm | On the belly of the forearm muscle | On bony spots nearby, such as the elbow and the wrist |
| EMG, biceps | On the middle of the biceps | On the elbow and the shoulder |
| ECG / EKG | Left side of the chest, or left wrist | Right side of the chest or right wrist, and lower abdomen or right ankle |
Packing list
| Qty | Item |
|---|---|

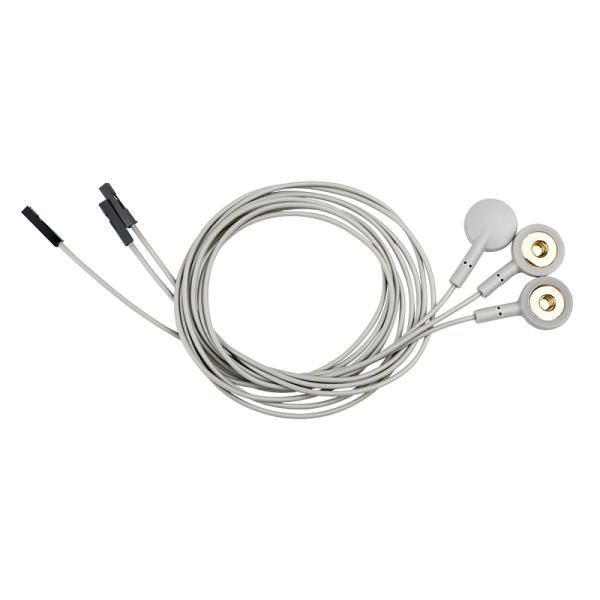

| 3 | Lead cables with snap connectors and 2.54 mm pin connectors |

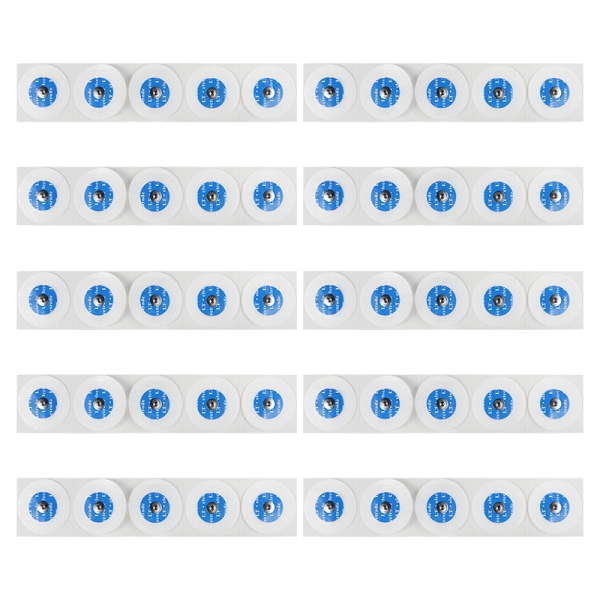

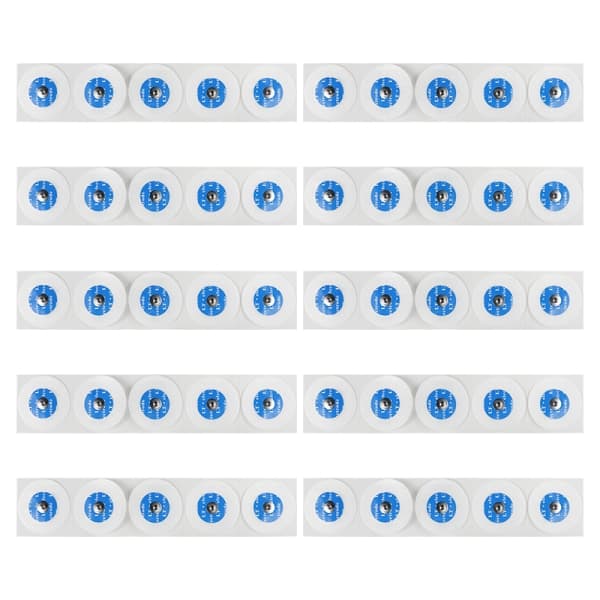

| 50 | Self-adhesive snap-on electrodes, Ag/AgCl with solid gel, 45 mm diameter |
The EEG / biosignal device is not included.
Product Gallery
Specifications
Key Features
Three Signal Types
Capture EMG (muscles), ECG/EKG (heart), and EEG (brain) with a single kit and a single hardware platform.
Plug & Play
No configuration required. Connect the electrodes to your PiEEG board and start recording.
Universal Compatibility
Compatible with PiEEG, PiEEG-16, IronBCI, MicroBCI, ardEEG, and JNEEG. One kit for all platforms.
Measure every biosignal
EMG, ECG, EEG — all in one kit. Compatible with every PiEEG hardware platform.
