Features & Specifications

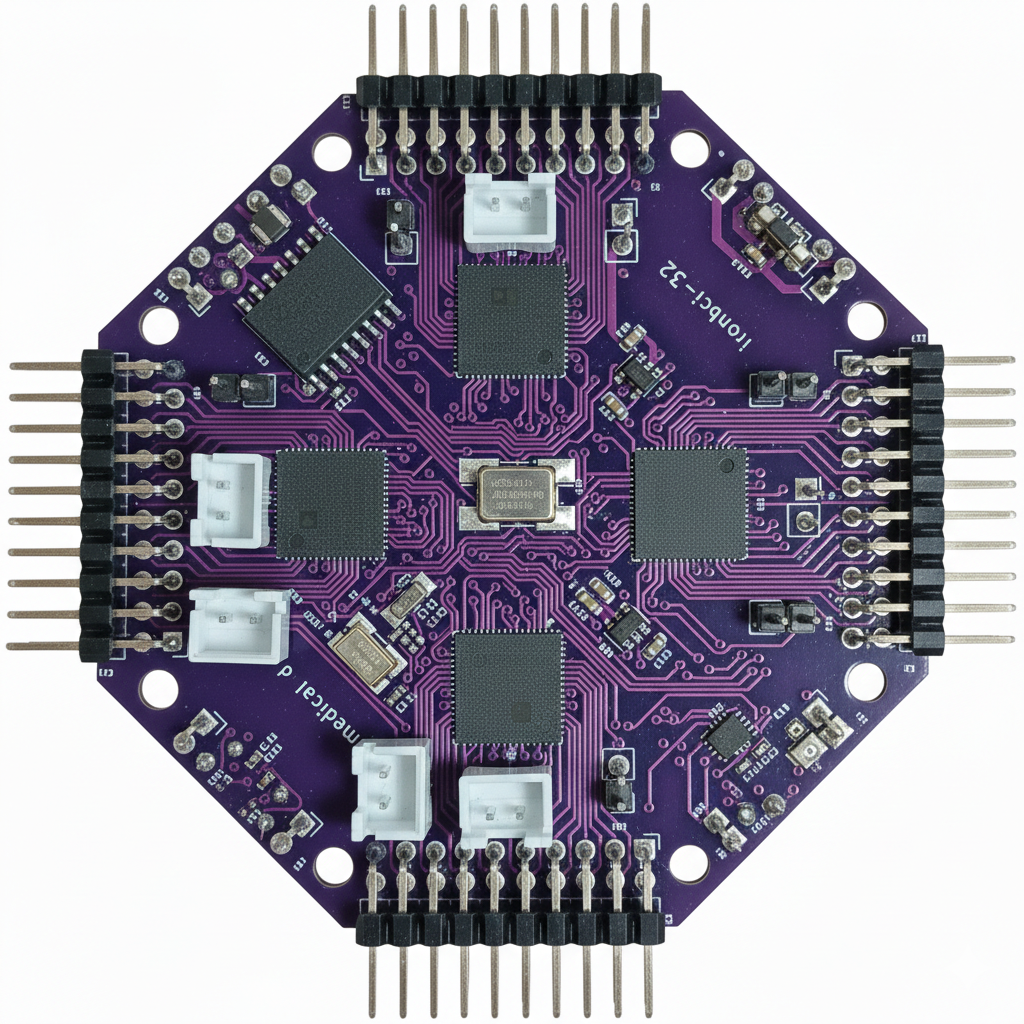

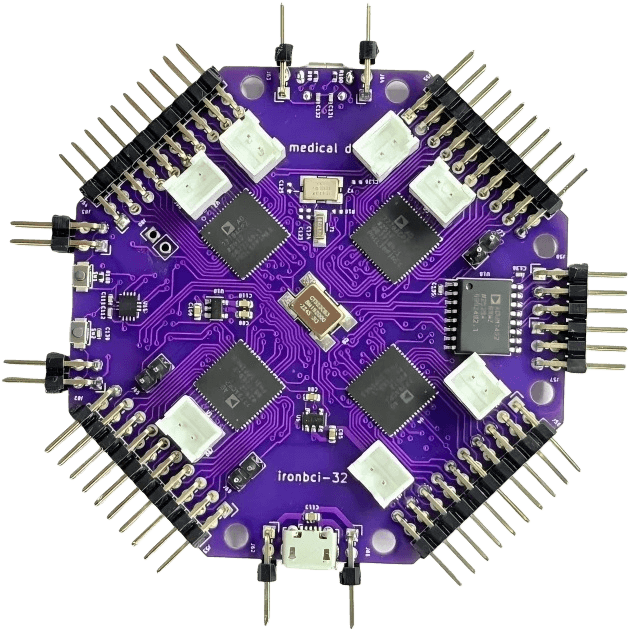

ironbci-32 integrates four 8-channel AD7771 analog-to-digital converters (ADCs), each with ultra-low-noise sources, ensuring highly accurate signal capture.

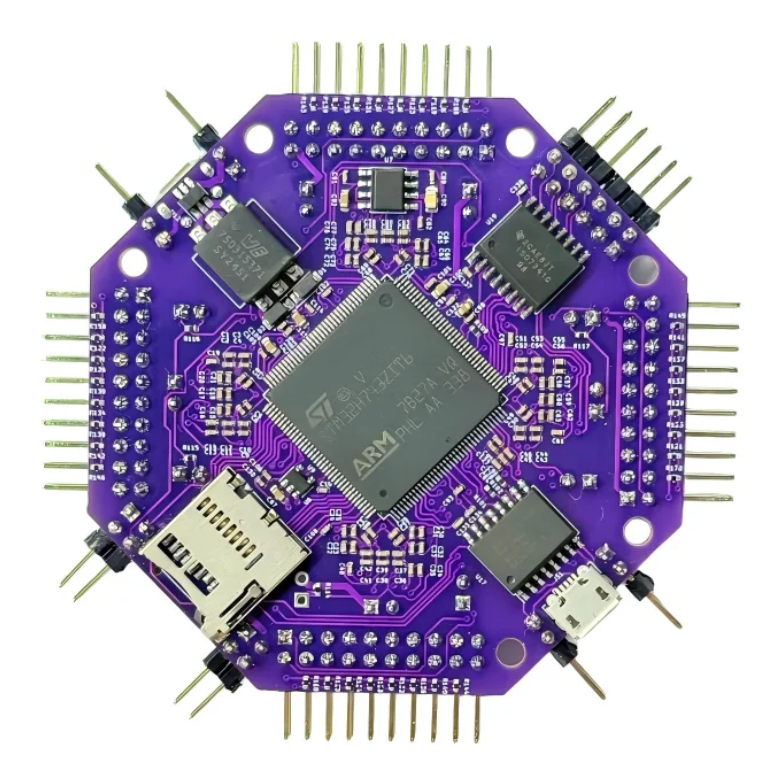

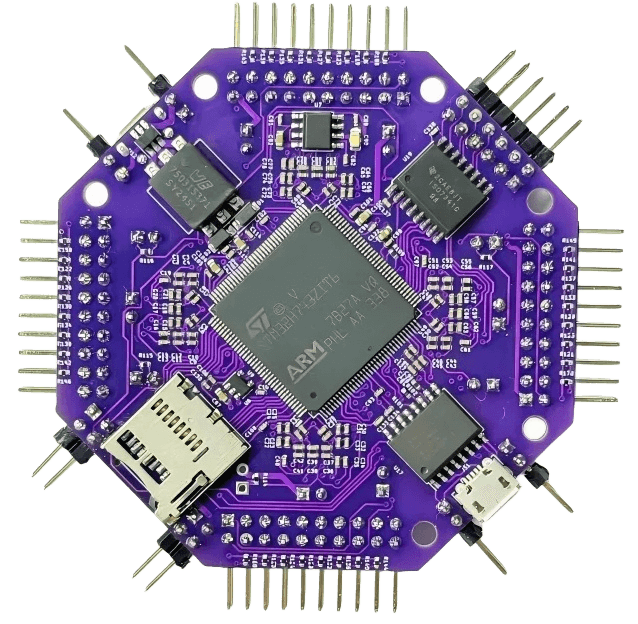

At its core is the STM32H7 ARM Cortex-M7 microcontroller

Integrated to open-source Brainflow Library

Source GitHub

Recommended with wet Electrodes (Ag/AgCl), electrodes connector – 2.54 mm.

Data Transfer – via Serial Port

Firmware is optimized for 512 SPS per channel when running all 32 channels simultaneously

Not a medical device. Read the Liability before buying and using it
